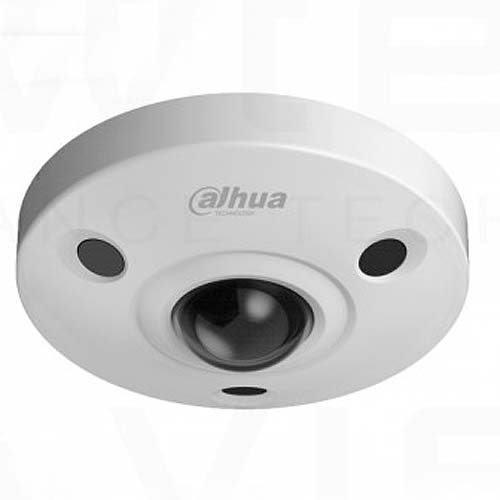

Dahua EBW81230-12MP Fisheye Camera
Rated 3.5/5 based on 11 customer reviews

Dahua EBW81230-12MP Fisheye Camera

Available: On order
  • NOTE: If Product Price Is R0.00 - Contact Us For A Quote EBW81230
R 9,810.08

EBW81230-Fisheye Camera

The Dahua EBW81230 12MP Panoramic Network IR Fisheye Camera is an expert at panoramic surveillance with low-profile design. With a fisheye lens, the camera can provide a high quality 180°or 360°panoramic views without blind spots, making it ideal for wide and open areas, such as airports, shopping malls, banks, hotels, stores, offices and more. The camera can offer different views including 360°overview and dewarped views such as panorama view, double views and quad views.

EBW81230-Fisheye Camera

The Dahua EBW81230 12MP Panoramic Network IR Fisheye Camera is an expert at panoramic surveillance with low-profile design. With a fisheye lens, the camera can provide a high quality 180°or 360°panoramic views without blind spots, making it ideal for wide and open areas, such as airports, shopping malls, banks, hotels, stores, offices and more. The camera can offer different views including 360°overview and dewarped views such as panorama view, double views and quad views.

  • 1/1.7” 12 Megapixel progressive scan STARVIS? CMOS
  • H.265/H.264 triple-stream encoding
  • Max 25fps @ 12M(4000×3000)
  • Multiple dewarped Mode
  • Day/Night(ICR), 3DNR, AWB, AGC, BLC
  • Smart detection
  • Intelligent Function
  • Max> IR LEDs length 10m
  • Micro SD memory, IP67, IK10, PoE

Download PDF version

Image Sensor 1/1.7” 12Megapixel progressive scan CMOS
Effective Pixels 4000(H)x3000(V)
RAM/ROM 1024MB/128MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual, 1/3~1/100000s
Minimum Illumination 0.001Lux/F2.8( Color,1/3s,30IRE)



0.01Lux/F2.8( Color,1/30s,30IRE)

0Lux/F2.8(IR on)

S/N Ratio More than 50dB
IR Distance Distance up to 10m(33ft)
IR On/Off Control Auto/ Manual
IR LEDs 3
Lens
Lens Type Fixed
Mount Type Board-in
Focal Length 1.98mm
Max. Aperture F2.8
Angle of View H: 180?, V:180?
Optical Zoom N/A
Focus Control Fixed
Close Focus Distance N/A
