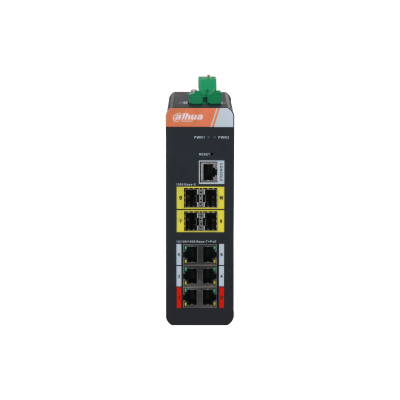

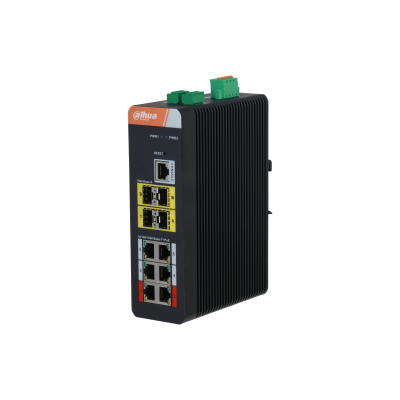

*PFS4410-6GT-DP
10-Port Gigabit Industrial Swicth with 6-Port Gigabit PoE (Managed)
* The parameters and datasheets below can only be applied to V2.0 (version 2.0) 、
> All-gigabit port design.
> Supports IEEE802.3af, IEEE802.3at, Hi-PoE and IEEE802.3bt (red port) standards.
> 250 m long-distance PoE transmission (10 Mbps).
> PoE Watchdog.
> Supports STP, RSTP, and MSTP.
> IEEE802.1Q-based VLAN configuration.
> Manual link aggregation and static LACP.

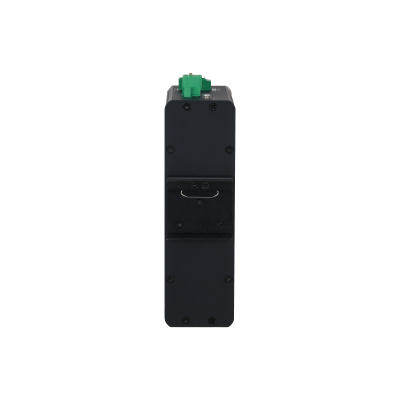

> Desktop mount and DIN-rail mount.
-
Hardware
Included Power Adapter
No
PoE
Yes
Ethernet Port
6
Optical Port
4
Ethernet Port Speed
10 Mbps/100 Mbps/1000 Mbps
Optical Port Speed
1000 Mbps
Console Port
1
Power Supply Mode
48 V–57 V DC
Operating Temperature
–40 °C to +75°C (–40 °F to +167 °F)
Operating Humidity
10%–90% (RH)
Power Consumption
Idling: ≤ 6 W
Full load: 120 WPerformance
Layer
L2
Managed
Yes
Switching Capacity
28 Gbps
Packet Forwarding Rate
14.88 Mpps
Packet Buffer Size
4 Mbits
Communication Standard
IEEE 802.3; IEEE 802.3u; IEEE 802.3x; IEEE 802.3ab; IEEE 802.3z; IEEE 802.3ad
MAC Table Size
8K
Function
PoE Protocol
IEEE 802.3af (PoE); IEEE 802.3at (PoE+); Hi-PoE; IEEE 802.3bt
PoE Power
Port 1-2: ≤ 90 W
Port 3-6: ≤ 30 W
Total: ≤ 120 W
PoE Power Consumption Management
Power consumption management
PoE power on and off
Power off when PoE power is overloaded
Green PoEPoE Pin Assignment
1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)
Long Distance PoE Transmission
Yes
Jumbo Frame
9,000 bytes
Spanning Tree Protocol
ERPS
VLAN Function
802.1Q
Flow Control
Full-duplex flow control (back pressure)
Full-duplex flow control (PAUSE)
Link Aggregation
Static link aggregation; LACP
Port Mirroring
Multiple-to-one port mirroring
Multicast
Yes
DHCP Function
DHCP client
DHCP-Server
DHCP-SnoopingSecurity
User management
HTTP
SSH
SNMP V1/V2C/V3
RMON
ACL
IP source guard
Port/VLAN-based ARP check
Static ARP check
Dynamic ARP check
802.1x
Loop protection
QoS
CoS/DPL/PCP/DEI-based QoS
8 output queue for each port
Port shaping
Port tag remarking
DSCP-based QoS
Maintenance
Uploading/downloading configuration files
Online upgrade
System logsDevice Management
Web (HTTP and HTTPS protocol); Telnet; SNMP; CLI
General
Statics Protection
Air discharge: 8 kV
Contact discharge: 6 kVLighting Protection
Common mode: 6 kV
Differential mode: 4 kVNet Weight
1.25 kg (2.8 lb)
Gross Weight
1.52 kg (3.4 lb)
Product Dimensions
125 mm × 53.5mm × 175mm (4.9 " × 2.1 " × 6.9") (L × W × H)
Packing Dimensions
254 mm × 287 mm × 101 mm (10.0 " × 11.3 " × 4.0 ")
Transmission Performance:
Switch power supply voltage 53V.
CAT5E/CAT6. Max. DC resistance < 10Ω/100m
Cable(m)
Load Capacity(W)
Bandwidth(Mbps)
IEEE802.3bt 90W
100
71.3
1000
150
62
10
200
51
10
250
40
10
Hi-PoE 60W
100
53
1000
150
50
10
200
47
10
250
37
10
IEEE802.3at 30W
100
25.5
1000
150
25.5
10
200
25.5
10
250
25.5
10
Note: Data from this table was collected by Dahua test lab and is for reference only . If there is inconsistency between field application and the table, the field result shall prevail.
