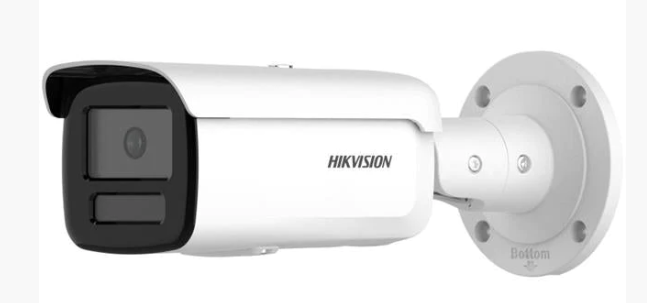

DS-2CD2T47G2H-LI 4MM
**HKV DS-2CD2T47G2H-LI (4MM)
Hikvision Smart Hybrid Light with ColorVu Bullet Network Camera 4MP IR, H.265+, 1/1.8"CMOS, 2688 × 1520 @30fps, 4mm Lens, White Light Range:60m, 130dB WDR, BLC, HLC, 3D DNR, Built-in Micro SD/SDHC/SDXC Slot Upto:512GB, 1xRJ45 10M/100M, IP67
FEATURE(S)
- High quality imaging with 4 MP resolution
- Smart Hybrid Light: advanced technology with long range
- Clear imaging against strong back light due to 130 dB WDR technology
- Efficient H.265+ compression technology
- Focus on human and vehicle classification based on deep learning
- Water and dust resistant (IP67)
SPECIFICATIONS
Camera
- Image Sensor : 1/1.8" Progressive Scan CMOS
- Max. Resolution : 2688 × 1520
- Min. Illumination : Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light
- Shutter Time : 1/3 s to 1/100,000 s
- Day & Night : IR cut filter
- Angle Adjustment : Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Lens
- Lens Type : Fixed focal lens, 4mm
- Focal Length & FOV : 4 mm, horizontal FOV 89.2°, vertical FOV 45.5°, diagonal FOV 108.2°
- Lens Mount : M16
- Iris Type : Fixed
- Aperture : F1.0
- Depth of Field : 4 mm: 3.1 m to ∞
DORI
- DORI : 4 mm: D: 75 m, O: 30 m, R: 15 m, I: 7 m
Illuminator
- Supplement Light Type : IR, White Light
- Supplement Light Range : Up to 60 m
- Smart Supplement Light : Yes
- IR Wavelength : 850 nm
Video
- Main Stream
- 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
- 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
- Sub-Stream
- 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
- 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
- Third Stream
- 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
- 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
- *The third stream is supported under certain settings.
- Video Compression
- Main stream: H.265/H.264/H.264+/H.265+,
- Sub-stream: H.265/H.264/MJPEG,
- Third stream: H.265/H.264,
- *Third stream is supported under certain settings.
- Video Bit Rate : 32 Kbps to 8 Mbps
- H.264 Type : Baseline Profile, Main Profile, High Profile
- H.265 Type : Main Profile
- Bit Rate Control : CBR, VBR
- Scalable Video Coding (SVC) : H.264 and H.265 encoding
- Region of Interest (ROI) : 1 fixed region for main stream and sub-stream
Network
- Protocols : TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
- Simultaneous Live View : Up to 6 channels
- API : Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
- User/Host
- Up to 32 users
- 3 user levels: administrator, operator, and user
- Security : Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest
authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address) - Network Storage : NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
- Client : iVMS-4200, Hik-Connect, Hik-Central
- Web Browser
- Plug-in required live view: IE 10, IE 11,
- Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,
- Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
- Image Parameters Switch : Yes
- Image Settings : Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
- Day/Night Switch : Day, Night, Auto, Schedule
- Image Enhancement : BLC, HLC, 3D DNR
- SNR : ≥ 52 dB
- Wide Dynamic Range (WDR) : 130 dB
- Privacy Mask : 4 programmable polygon privacy masks
Interface
- Ethernet Interface : 1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board Storage : Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
- Reset Key : Yes
Event
- Basic Event : Motion detection (support alarm triggering by specified target types (human and
vehicle)), video tampering alarm, exception - Linkage : Upload to FTP/NAS/memory card, notify surveillance center, trigger recording, trigger
capture, send email - Smart Event : Scene change detection
Deep Learning Function
- Face Capture : Yes
- Perimeter Protection
- Line crossing, intrusion, region entrance, region exiting
- Support alarm triggering by specified target types (human and vehicle)
General
- Power
- 12 VDC ± 25%, 0.66 A, max. 8 W, Ø 5.5 mm coaxial power plug, reverse polarity protection,
- PoE: IEEE 802.3af, Class 3, max. 9 W
- Material : Front cover: Metal, body: Metal, bracket: Metal
- Dimension : 286.7 mm × 93.3 mm × 91.2 mm (11.3" × 3.7" × 3.6")
- Package Dimension : 386 mm × 156 mm × 155 mm (15.2" × 6.1" × 6.1")
- Weight : Approx. 1085 g (2.4 lb.)
- With Package Weight : Approx. 1639 g (3.6 lb.)
- Storage Conditions : -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions : -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- General Function : Heartbeat, mirror, password reset via email, pixel counter, anti-banding
- Language
- 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian,
Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish,
Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese,
Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian,
