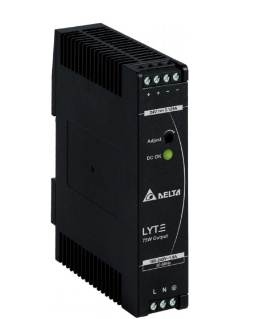

DRL-48V75W1AZ
**Industrial Power Supply Unit
- 48V, 75W
Specification
- OUTPUT
- DC VOLTAGE48V DC
- CONSTANT CURRENT REGIONNote.243.2-52.8V DC
- RATED CURRENT(ForBETypeonly)1.57A
- RATED POWER75W
-
RIPPLE & NOISE (Max.) Note.3
< 240mVpp @ > -10°C to +70°C
< 480mVpp @ ≤ -10°C to -30°C
- VOLTAGE TOLERANCE Note.4±1.0%
-
HOLD UP TIME (Typ.)
16ms typ. @ 115Vac (100% load)
60ms typ. @ 230Vac (100% load)
- ENVIRONMENT
- WORKING HUMIDITY5 to 95% RH (Non-Condensing
- STORAGE TEMP., HUMIDITY40°C to +85°C
- SAFETY& EMC
-
SAFETY STANDARDS
IEC 62368-1, IEC 60950-1, IEC 61010-1
EN 62368-1
UL 62368-1
GB4943.1
TP TC 004/2011
K60950-1
IEC 62368-1 (For DRL-24V75W1AZ & DRL-48V75W1AZ)
In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU
- OTHERS
- DIMENSION123.6 x 27 x 102 mm (4.86 x 1.06 x 4.01 inch)
- PACKING0.22 kg (0.49 lb)
