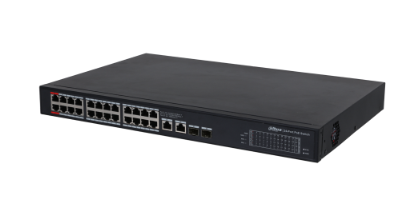

DH-PFS3228-24GT-240

*DH-PFS3228-24GT-240

DH-PFS3228-24GT-240

System Overview

DH-PFS3228-24GT-240 is an unmanaged PoE switch with red port
supporting IEEE802.3bt standard. It supports maximum 90W power
supply and power consumption management strategy to ensure
the stable operation under extreme circumstances. Gigabit accesses
support high definition. Gigabit uplink optical fiber supports long
distance transmission.

Scene

Applicable to small and micro-scale monitoring networks such as office
desktops, schools, hotels, supermarkets, hospitals.

Intelligent PoE
· Red Port Supports BT 90W
· All-giga Ports
· Smooth Transmission
· Wide Working Temperature: –10 to 55°C (14°F to 131°F)
· Plug and Play

Technical Specification

Certification

Layer Layer 2
Managed No
Switching Capacity 52 Gbps
Packet Forwarding Rate 38.688 Mpps
Packet Buffer Memory 4 Mbit
MAC Table Size 8K
Standards Compliance IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab,
IEEE802.3z
Hardware Feature
Standard Power Supply Yes
PoE Yes
Ethernet Port 24
Optical Port 2Ethernet Port Rate 1 Gbps
Optical Port Rate 1 Gbps
Number of Bussiness Card
Slots
Port 1–24: 24 × RJ45 10/100/1000 M (PoE)
Port 25–26: 2 × RJ45 10/100/1000 (uplink)
Port 27–28: 2 × SFP 1000 M (uplink)
Power Supply 100V AC–240V AC
Operating Temperature –10°C to 55°C (14°F to 131°F)
Operating Humidity 10%–90%
Storage Humidity 5%–95%
Power Consumption Idling: 8W
Full load: 240W

PoE
PoE Standard IEEE802.3af/ IEEE802.3at/ Hi-PoE/IEEE802.3bt
PoE Budget Port 1–2≤90W, Port 3–24≤30W, total≤240W
PoE Pin Assignment PoE/Hi-PoE: 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)
General
ESD Air discharge: 8kV
Contact discharge: 6kV
Thunderproof Common mode: 4kV
Differential mode: 2kV
Dimensions 440 mm × 300 mm × 44 mm (17.32" × 11.81" × 1.73")
Packaging Dimensions 527 mm × 412 mm × 110 mm (20.75" × 16.22" × 4.33"
