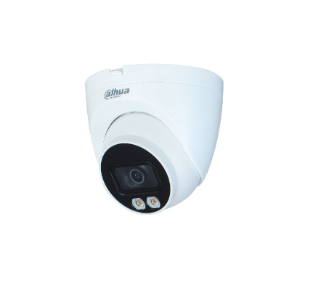

4MP Lite Full-color Fixed-focal Eyeball Network Camera
DH-IPC-HDW2439T-AS-LED-S2
4MP Lite Full-color Fixed-focal Eyeball Network Camera
· 4MP, 1/3" CMOS image sensor, low illuminance, high image definition
· Outputs 4MP (2560 × 1440) @ 25/30 fps, Max. supports 4MP
(2688 × 1520) @ 20 fps
· H.265 codec, high compression rate, ultra-low bit rate
· Built-in warm lights, max. illumination distance: 30 m
· ROI, SMART H.264+/H.265+, flexible coding, applicable to various
bandwidth and storage environments
· Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking,
applicable to various monitoring scenes
· Intelligent detection: Intrusion, tripwire
· Abnormality detection: Motion detection, video tampering, scene
changing, no SD card, SD card full, SD card error, network
disconnection, IP conflict, illegal access, voltage detection
· Supports max. 256 GB Micro SD card and built-in Mic
· 12V DC/PoE power supply
· IP67 protection
Lite Series | DH-IPC-HDW2439T-AS-LED-S2
Series Overview
With upgraded H.265 encoding technology, Dahua Lite series network
camera has efficient video encoding capacity, which saves bandwidth
and storage space. This camera adopts the latest starlight technology
and displays better color image in the condition of low illumination. It
supports SD card storage, dust-proof function, waterproof function and
vandal-proof function, complying with the standards of IP67 (Supported
by some select models).
Functions
Smart H.265+ & Smart H.264+
With advanced scene-adaptive rate control algorithm, Dahua smart
encoding technology realizes the higher encoding efficiency than H.265
and H.264, provides high-quality video, and reduces the cost of storage
and transmission.
Full-color
With high-performance sensor and large aperture lens, Dahua Full-color
technology can display clear colorful image in the environment of ultra-
low illuminance. With this photosensitivity technology, the camera can
capture more available light, and display more colorful image details.
WDR
With advanced Wide Dynamic Range (WDR) technology, Dahua network
camera provides clear details in the environment of strong brightness
contrast. The bright and dark area can get clear video even in high
brightness environment or with backlight shadow.
IVS
With advanced video algorithm, Dahua IVS technology supports
intelligent functions, such as tripwire and intrusion.
Cyber Security
Dahua network camera is equipped with a series of key security
technologies, such as security authentication and authorization, access
control, trusted protection, encrypted transmission, and encrypted
storage, which improve its security defense and data protection, and
prevent malicious programs from invading the device.
Protection (IP67, wide voltage)
IP67: The camera passes a series of strict test on dust and soak. It has
dust-proof function, and the enclosure can works normal after soaking
in 1 m deep water for 30 minutes.
Wide voltage: The camera allows ±30% (for some power supplies)
input voltage tolerance (wide voltage range), and it is widely applied to
outdoor environment with instable voltage.
DH-IPC-HDW2439T-AS-LED-S2
4MP Lite Full-color Fixed-focal Eyeball Network Camera
· 4MP, 1/3" CMOS image sensor, low illuminance, high image definition
· Outputs 4MP (2560 × 1440) @ 25/30 fps, Max. supports 4MP
(2688 × 1520) @ 20 fps
· H.265 codec, high compression rate, ultra-low bit rate
· Built-in warm lights, max. illumination distance: 30 m
· ROI, SMART H.264+/H.265+, flexible coding, applicable to various
bandwidth and storage environments
· Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking,
applicable to various monitoring scenes
· Intelligent detection: Intrusion, tripwire
· Abnormality detection: Motion detection, video tampering, scene
changing, no SD card, SD card full, SD card error, network
disconnection, IP conflict, illegal access, voltage detection
· Supports max. 256 GB Micro SD card and built-in Mic
· 12V DC/PoE power supply
· IP67 protection
Lite Series | DH-IPC-HDW2439T-AS-LED-S2
Series Overview
With upgraded H.265 encoding technology, Dahua Lite series network
camera has efficient video encoding capacity, which saves bandwidth
and storage space. This camera adopts the latest starlight technology
and displays better color image in the condition of low illumination. It
supports SD card storage, dust-proof function, waterproof function and
vandal-proof function, complying with the standards of IP67 (Supported
by some select models).
Functions
Smart H.265+ & Smart H.264+
With advanced scene-adaptive rate control algorithm, Dahua smart
encoding technology realizes the higher encoding efficiency than H.265
and H.264, provides high-quality video, and reduces the cost of storage
and transmission.
Full-color
With high-performance sensor and large aperture lens, Dahua Full-color
technology can display clear colorful image in the environment of ultra-
low illuminance. With this photosensitivity technology, the camera can
capture more available light, and display more colorful image details.
WDR
With advanced Wide Dynamic Range (WDR) technology, Dahua network
camera provides clear details in the environment of strong brightness
contrast. The bright and dark area can get clear video even in high
brightness environment or with backlight shadow.
IVS
With advanced video algorithm, Dahua IVS technology supports
intelligent functions, such as tripwire and intrusion.
Cyber Security
Dahua network camera is equipped with a series of key security
technologies, such as security authentication and authorization, access
control, trusted protection, encrypted transmission, and encrypted
storage, which improve its security defense and data protection, and
prevent malicious programs from invading the device.
Protection (IP67, wide voltage)
IP67: The camera passes a series of strict test on dust and soak. It has
dust-proof function, and the enclosure can works normal after soaking
in 1 m deep water for 30 minutes.
Wide voltage: The camera allows ±30% (for some power supplies)
input voltage tolerance (wide voltage range), and it is widely applied to
outdoor environment with instable voltage.
