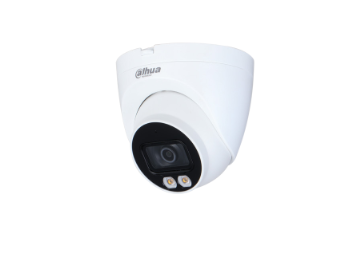

2MP Lite Full-color Fixed-focal Eyeball Network Camera
*DH-IPC-HDW2239T-AS-LED-S2
2MP Lite Full-color Fixed-focal Eyeball Network Camera
· 2MP, 1/2.8" CMOS image sensor, low illuminance, high image definition
· Outputs max. 2MP (1920 × 1080) @25/30 fps
· H.265 codec, high compression rate, ultra-low bit rate
· Built-in warm lights, max. illumination distance: 30 m
· ROI, SMART H.264+/H.265+, flexible coding, applicable to various
bandwidth and storage environments
· Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking,
applicable to various monitoring scenes
· Intelligent detection: Intrusion, tripwire
· Abnormality detection: Motion detection, video tampering, scene
changing, no SD card, SD card full, SD card error, network
disconnection, IP conflict, illegal access, voltage detection
· Built-in Mic
· Supports max. 256 GB Micro SD card
· 12V DC/PoE power supply.
Series Overview
With upgraded H.265 encoding technology, Dahua Lite series network
camera has efficient video encoding capacity, which saves bandwidth
and storage space. This camera adopts the latest full-color technology
and displays better color image in the condition of low illumination. It
supports SD card storage, dust-proof function, waterproof function and
vandal-proof function, complying to the standards of IP67.
Functions
Smart H.265+ & Smart H.264+
With advanced scene-adaptive rate control algorithm, Dahua smart
encoding technology realizes the higher encoding efficiency than H.265
and H.264, provides high-quality video, and reduces the cost of storage
and transmission.
Full-color
With high-performance sensor and large aperture lens, Dahua Full-color
technology can display clear colorful image in the environment of ultra-
low illuminance. With this photosensitivity technology, the camera can
capture more available light, and display more colorful image details.
WDR
With advanced Wide Dynamic Range (WDR) technology, Dahua network
camera provides clear details in the environment of strong brightness
contrast. The bright and dark area can get clear video even in high
brightness environment or with backlight shadow.
IVS
With advanced video algorithm, Dahua IVS technology supports
intelligent functions, such as tripwire and intrusion.
Protection (IP67, wide voltage)
IP67: The camera passes a series of strict test on dust and soak. It has
dust-proof function, and the enclosure can works normal after soaking
in 1 m deep water for 30 minutes.
Wide voltage: The camera allows ±30% input voltage tolerance (wide
voltage range), and it is widely applied to outdoor environment with
instable voltage.
