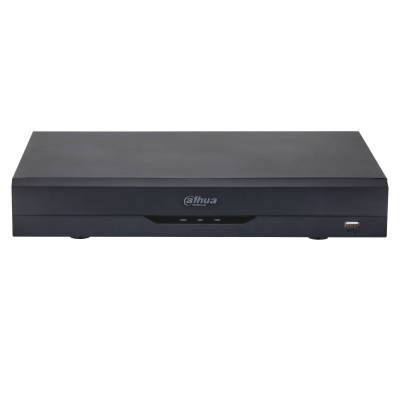

*XVR5108HE-I3
8CH Penta-brid 5MP Value/1080P Mini 1U 1HDD WizSense Digital Video Recorder
* The parameters and datasheets below can only be applied to Hardware Version 3.0.
> H.265+/H.265 dual-stream video compression.
> Supports all-channel AI Coding.
> Supports HDCVI/AHD/TVI/CVBS/IP video inputs.
> Max 12 channels IP camera inputs, each channel up to 6MP; Max 64 Mbps incoming bandwidth.
> Up to 4 channels video stream (analog channel) perimeter protection.
> Up to 8 channels video stream (analog channel) SMD Plus.
> Up to 2 channels video stream (analog channel) human face recognition.
> IoT & POS functionalities.
Â
-
System
Main Processor
Industrial-grade processor
Operating System
Embedded Linux
Operating Interface
Web; Local GUI
Perimeter Protection
Perimeter Performance AI by Recorder (Number of Channels)
Advanced Model: 2 channels, 10 IVS for each channel
General Model: 4 channels, 10 IVS for each channelFace Detection
Face Attributes
Gender; age group; glasses; expressions; face mask; beard
Face Detection Performance of AI by Recorder (Number of Channels)
2 channels (up to 8 face images/s each channel)
Face Recognition
Face Database Capacity
Up to 10 face databases with 10,000 face images in total. Name, gender, birthday, address, certificate type, certificate No., countries & regions and state can be added to each face image
Face Recognition Performance of AI by Recorder (Number of Channels)
2 channels
SMD Plus
SMD Plus by Recorder
8 channels: Secondary filtering for human and motor vehicle , reducing false alarms caused by leaves, rain and lighting condition change
Audio and Video
Analog Camera Input
8 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
Camera Input
1. CVI: 5MP@20fps, 5MP@25fps, 5MP@10/12.5fps, 4MP@25/30fps, 1080p@25/30fps, 720p@50/60fps, 720p@25/30fps.
2. TVI: 5MP@20fps, 4MP@25/30fps, 1080p@25/30fps, 720p@25/30fps.
3. AHD: 5MP@20fps, 4MP@25/30fps, 1080p@25/30fps, 720p@25/30fps
IP Camera Input
Up to 12 channels of IPC access
4 IP channels by default + 8 channels (analog channels are converted to IP channels)
incoming bandwidth: 64 Mbps, recording bandwidth: 64 Mbps and outgoing bandwidth: 64 Mbps
*After IP channels are added beyond the existing channels, the AI Function (IVS, SMD, FACE) will be disabledEncoding Capacity
Main stream:
5MP Mode: 4-ch 5MP@(1-6fps); other channels 5M-N@(1-12fps)
5M-N Mode:
All channel 5M-N@(1–12fps);4M-N,1080p@(1–15fps); 1080N, 720p, 960H, D1,CIF@(1–25/30fps)
Sub stream: D1, CIF@(1–15fps)
Dual-stream
Yes
Video Bit Rate
32 kbps–6144 kbps
Audio Sampling
8 kHz, 16 bit
Audio Bit Rate
64 kbps
Video Output
1 HDMI, 1 VGA
VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720Multi-screen Display
When IP extension mode not enabled: 1/4/8/9
When IP extension mode enabled: 1/4/8/9/16Third-party Camera Access
ONVIF; Panasonic; Sony; Axis; Arecont; Samsung
Compression Standard
Video Compression
AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
Audio Compression
G.711a; G.711u; PCM
Network
Network Protocol
HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; DDNS; Alarm Server; P2P; Auto Registration
Mobile Phone Access
iOS; Android
Interoperability
ONVIF 22.12(Profile T; Profile S; Profile G); CGI; SDK
Browser
Chrome
IE9 or later
FirefoxNetwork Mode
Single-address mode
Recording Playback
Record Mode
General, motion detection; intelligent; alarm; POS
Recording Playback
1/4/9
It changes to 1/4 split when Face or IVS&SMD is selected in AI Mode.Backup Method
USB device and network
Playback Mode
Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection)
Alarm
General Alarm
Motion detection; video loss; video tampering; local alarm
Anomaly Alarm
No disk; disk error; disk full; offline; IP conflict; MAC conflict
Intelligent Alarm
Face detection; face recognition; perimeter protection
Alarm Linkage
Record; snapshot (panoramic); local alarm output; IPC external alarm output; voice prompt; buzzer; log; preset; email
Ports
Audio Input
8-channel RCA
8-channel BNC (Coaxial Audio)Audio Output
1-channel RCA
Two-way Talk
Yes (share the same audio input with the first channel)
Alarm Input
8 channels
Alarm Output
3 channels
HDD Interface
1 SATA port, up to 16TB capacity. The maximum HDD capacity varies with environment temperature
RS-485
1 port, for PTZ control
USB
2 (1 front USB 2.0 port, 1 rear USB 2.0 port)
HDMI
1
VGA
1
Network Port
1 (10/100 Mbps Ethernet port, RJ-45)
General
Power Supply
12 VDC, 2 A
Power Consumption
<7 W (without HDD)
Net Weight
1.21 kg (2.67 lb)
Gross Weight
1.83 kg (4.04 lb)
Product Dimensions
325.0 mm × 257.1 mm × 55.0 mm (12.80'' × 10.12'' × 2.17'') (W × D × H)
Packaging Dimensions
372.0 mm × 117.0 mm × 308.0 mm (14.65'' × 4.61'' × 12.13'') (W × D × H)
Operating Temperature
–10 °C to +55 °C (+14 °F to +131 °F)
Storage Temperature
–20 °C to +60 °C (–4 °F to +140 °F)
Operating Humidity
≤93% (RH)
Installation
Rack or desktop
Certifications
CE: CE-LVD: IEC 62368-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024, EN 55035
