*DH-PFS3110-8ET-96
8-Port PoE Switch
Features
· Layer two Hardened PoE switch
· Supports PoE power management
· MAC auto learning and aging, MAC address capacity is 8K
· Conforms to IEEE802.3af and IEEE802.3at power supply
standard. Port 1-2 supports Hi-PoE 60W power supply
· Supports IEEE802.3, IEEE802.3u, IEEE802.3ab/z and
IEEE802.3X standards
· Wide working temperature design: -30°C~ 65°C
· Supports dual power backup
Product Overview

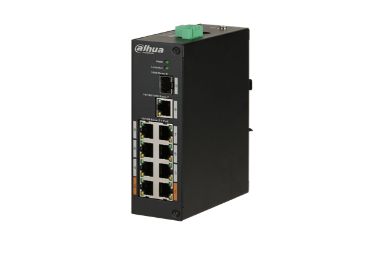

DH-PFS3110-8ET-96 is a layer two Hardened PoE Switch, which
provides 8*10/100Mbps PoE ports, 1*100/1000 Mbps optical port and
1*10/100/1000Mbps Ethernet uplink port. With high level lightning
protection and wide working temperature range makes it a better
performance in outdoor or harsh environment.
Technical Specification
Model DH-PFS3110-8ET-96
Ethernet Port
1*1000 Base-X
1*10/100/1000 Base-T
8*10/100 Base-T (PoE power supply)
PoE Power Consumption Port1-2≤60W, Port3-8≤30W, Total≤96W
PoE PIN Assignment 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)
PoE Power Management Support
PoE Protocol IEEE802.3af (PoE), IEEE802.3at (PoE+), Hi-PoE
Switching Capacity 7.6G
Packet Forwarding Rate 4.17Mpps
Packet Buffer Memory 1Mb
MAC Table Size 8K
Flow Control Enable by default
Application Humidity 5%~95%
Power DC 48~57V power adapter
Lightning Protection Common Mode 6KV
Differential Mode 4KV
ESD Protection Air Discharge 15KV
Contact Discharge 8KV
Working Temperature -30°C~65°C
Weight 540g
Dimension(W×D×H) 150mm×100mm×42mm
Accessories
Model
PFT3950 1.25G 850nm,500m,LC, Multi-mode
PFT3960 1.25G 1310/1550nm,20km,LC, Single-mode
PFT3970 1.25G 1550/1310nm,20km,LC, Single-mode
