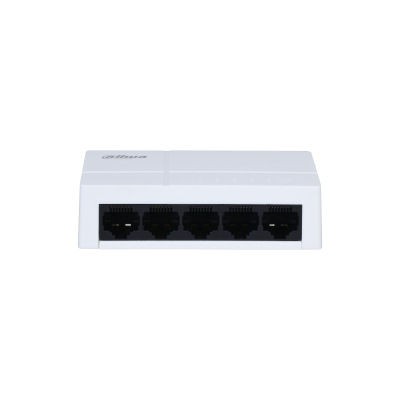

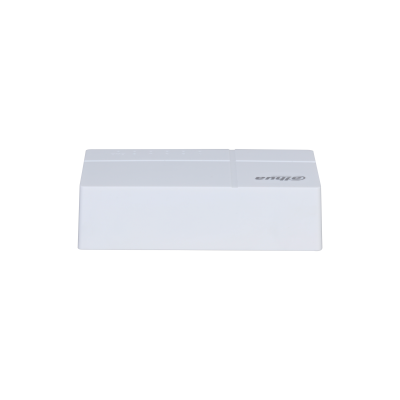

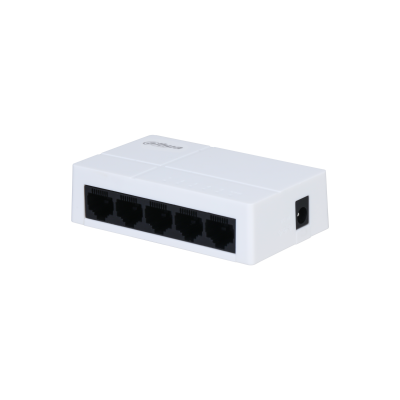

5-Port Unmanaged Gigabit Switch

Hardware

Included Power Adapter

Yes

Ethernet Port

5

Ethernet Port Speed

10/100/1000 Mbps

Description of Function Slots

Port 1-5: 5 × 10/100/1000 Base-T

Power Supply

5 VDC; 1 A

Operating Temperature

0 °C to +45 °C (+32 °F to +113 °F)

Operating Humidity

5%–95% (RH)

Storage Temperature

–40 °C to +70 °C (–40 °F to +158 °F)

Storage Humidity

5%–95% (RH)

Power Consumption

Idling: 0.5 W;
Full load: 1.5 W

Performance

MTBF

363.24 years

Switching Capacity

10 Gbit

Packet Forwarding Rate

7.44 Mpps

Packet Buffer Size

1 Mbit

MAC Table Size

2K

General

Statics Protection

Air discharge: 8 kV
Contact discharge: 4 kV

Lighting Protection

Common mode: 2 kV

Net Weight

0.12 kg (0.26 lb)

Gross Weight

0.23 kg (0.51 lb)

Product Dimensions

86.4 mm × 52.0 mm × 23.0 mm
(3.40" × 2.05" × 0.91")

Packaging Dimensions

94.0 mm × 111.0 mm × 67.0 mm
(3.70" × 4.37" × 2.6")

Casing Material

Plastic

Installation

Desktop mount

Certifications

CE; FCC
