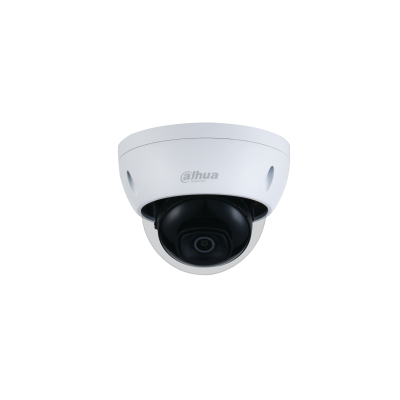

2MP Lite IR Fixed-focal Dome Network Camera
Rated 3.5/5 based on 11 customer reviews
Sabre Security Mart

2MP Lite IR Fixed-focal Dome Network Camera

Available: All prices Exclude VAT. Shipping and Vat will be calculated at checkout
Wishlist Compare
  • NOTE: If Product Price Is R0.00 - Contact Us For A Quote DH-IPC-HDBW2230E-S-S2_2.8mm
R 1,066.13

*IPC-HDBW2230E-S-S2

2MP Lite IR Fixed-focal Dome Network Camera

> 2MP 1/2.8" CMOS image sensor, low luminance, and high definition image.

> Outputs max. 2MP (1920 × 1080) @25/30 fps.

> H.265 codec, high compression rate, ultra-low bit rate.

> Built-in IR LED, and the max. illumination distance is 30 m.

> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.

> Rotation mode, DWDR, 3D NR, HLC, BLC, digital watermarking, ap plicable to various monitoring scenes.

> Intelligent monitoring: Intrusion, tripwire.

> Abnormality detection: Motion detection, privacy masking, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.

> Max. 256 G micro SD card.

> 12V DC/PoE power supply.

> IP67, IK10 protection.


Camera

Image Sensor

1/2.8" CMOS

Max. Resolution

1920 (H) × 1080 (V)

ROM

128 MB

RAM

128 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.005 Lux@F1.6 (Color, 30 IRE)
0.0005 Lux@F1.6 (B/W, 30 IRE)
0 Lux (Illuminator on)

S/N Ratio

> 56 dB

Illumination Distance

30 m (98.43 ft) (IR)

Illuminator On/Off Control

Auto; manual

Illuminator Number

3 (IR LED)

Pan/Tilt/Rotation Range

Pan: 0°–355°
Tilt: 0°–65°
Rotation: 0°–355°

Lens

Lens Type

Fixed-focal

Lens Mount

M12

Focal Length

2.8 mm; 3.6 mm

Max. Aperture

2.8 mm: F1.6
3.6 mm: F1.6

Field of View

2.8 mm: Horizontal: 108°; Vertical: 56°; Diagonal: 128°
3.6 mm: Horizontal: 88°; Vertical: 44°; Diagonal: 105°

Iris Control

Fixed

Close Focus Distance

2.8 mm: 0.6 m (1.97 ft)
3.6 mm: 1.3 m (4.27 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

38.6 m (126.64 ft)

15.4 m (50.52 ft)

7.7 m

(25.26 ft)

3.9 m

(12.80 ft)

3.6 mm

58.9 m (193.24 ft)

23.6 m (77.43 ft)

11.8 m (38.71 ft)

5.9 m

(19.36 ft)

Smart Event

IVS

Tripwire; intrusion

Video

Video Compression

H.265; H.264; H.264B; MJPEG (Only supported by the sub stream)

Smart Codec

Smart H.265+; Smart H.264+

Video Frame Rate

Main stream:
1920 × 1080@1–25/30 fps
Sub stream:
704 × 576@1–25 fps
704 × 480@1–30 fps
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Stream Capability

2 streams

Resolution

1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 32 kbps–6144 kbps
H.265: 12 kbps–6144 kbps

Day/Night

Auto (ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

DWDR

White Balance

Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control

Auto; manual

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Smart Illumination

Yes

Image Rotation

0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower)

Mirror

Yes

Privacy Masking

4 areas

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; voltage detection; security exception

Network

Network Port

RJ-45 (10/100 Base-T)

SDK and API

Yes

Cyber Security

Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade

Network Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Boujour

Interoperability

ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone

User/Host

20 (Total bandwidth: 48 M)

Storage

FTP; SFTP; Micro SD card (support max. 256 G); NAS

Browser

IE
Chrome
Firefox

Management Software

Smart PSS; DSS; DMSS

Mobile Client

IOS; Android

Certification

Certifications

CE-LVD: EN 62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B

Power

Power Supply

12 V DC/PoE (802.3af)

Power Consumption

Basic: 1.8 W (12 V DC); 2.5 W (PoE)
Max. (ICR + H.265 + max. resolution + main stream + IR intensity + DWDR + IVS): 4.6 W (12 V DC); 5.4 W (PoE)

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity

≤ 95%

Storage Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Protection

IP67; IK10

Structure

Casing

Metal

Product Dimensions

81 mm × Φ109.9 mm (3.2"×Φ4.3")

Net Weight

0.35 kg (0.8 lb)

Gross Weight

0.49 kg (1.1 lb)
