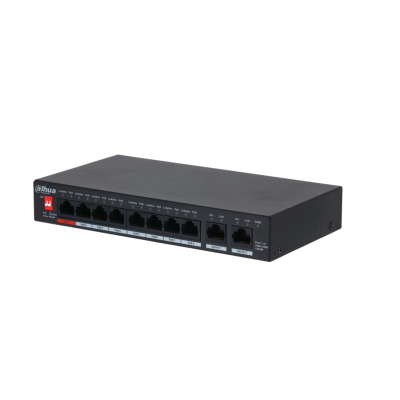

*PFS3010-8GT-96
10-Port Unmanaged Desktop Switch with 8 Port PoE
* The parameters and datasheets below can only be applied to V2.0 (version 2.0)
> Intelligent PoE
> 8-pin assignment PoE power supply
> Long distance PoE
> PoE watchdog
> BT 90W
> All-giga ports
> Wide working temperature
-
Ordering Information
Type
Model
Description
PoE Swtich
DH-PFS3010-8GT-96
Dahua 10-Port Unmanaged Desktop Switch with 8 Port PoE
PFS3010-8GT-96
10-Port Unmanaged Desktop Switch with 8 Port PoE
Specification
Hardware
Data Transmission Port
Port 1–8: 8 × RJ-4510/100/1000 Mbps (PoE)
Port 9-10: 2 × RJ-45 10/100/1000 Mbps (Uplink)Power Supply
48 V - 57 V DC
Operaing Temperature
–10 °C to +55 °C (+14°F to +131°F)
Operating Humidity
5% – 95% (RH)
Storage Temperature
–20 °C to +70 °C (–4°F to +158°F)
Storage Humidity
5% – 95%(RH)
Power Consumption
Idling: 3 W
Full load: 96 WPerformance
Capacity
20 Gbps
Packet Forwarding Rate
14.88 Mpps
Packet Buffer Memory
1.5 Mbit
MAC Table Size
4K
Communication Standard
IEEE802.3/IEEE802.3u/IEEE 802.3ab/IEEE802.3x
PoE
PoE Standard
IEEE802.3af; IEEE802.3at; Hi-PoE; IEEE802.3bt
PoE Power
96 W
Power Consumption Management
Yes
PoE Pin Assignment
1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)
Long Distance PoE
250 m long distance PoE transmission
General
Statics Protection
Air discharge: 8 kV
Contact discharge: 6 kVThunder-proof
Common mode: 4 kV
Differential mode: 2 kVNet Weight
0.50 kg (1.10 lb)
Gross Weight
1.32 kg (2.91 lb)
Product Dimensions
190 mm × 100 mm × 30 mm (7.48" × 3.94" × 1.18")
Transmission Performance:
Switch power supply voltage 53V.
CAT5E/CAT6. Max. DC resistance < 10 Ω/100 m
Cable(m)
Load Capacity(W)
Bandwidth(Mbps)
IEEE802.3bt 90 W
100
71.3
1000
150
62
10
200
51
10
250
40
10
Hi-PoE 60 W
100
53
1000
150
50
10
200
47
10
250
37
10
IEEE802.3at 30 W
100
25.5
1000
150
25.5
10
200
25.5
10
250
25.5
10
Note: Data from this table was collected by Dahua test lab and is for reference only . The actual transmission distance may vary due to power consumption of connected devices or the cable type and status.
