ZKX10080
Rated 3.5/5 based on 11 customer reviews

ZKX10080

Available: On order
  • NOTE: If Product Price Is R0.00 - Contact Us For A Quote ZKSI00037
R 789,750.00

**ZKX10080

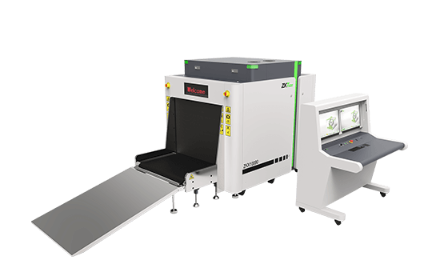

ZKX10080 X-ray inspection system increases the operator’s ability to identify potential threats; the device is designed to scan the objects up to a size of 100 × 80cm. ZKX10080 uses reliable high quality dual energy X-ray generator. With the superb image algorithm, ZKX10080 could o er clear scanning image, which allows operators to identify potential threat items visually. Also, ZKX10080 equipped with a lowered conveyor height to make it easier to put the luggage on. ZKX10080 has innovative

 Special Order Only

  • SPECIFICATIONS


  • Tunnel Size

    1006*803 (mm) (W*H)

  • Speed

    0.2 to 0.4 m/s

  • Height of Transmission Belt

    385 mm

  • Maximum Load

    200 kg (Adequate distribution)

  • Wire Resolution

    38 AWG

  • Space Definition

    Horizontal Φ1.0mm \ Vertical Φ2.0mm

  • Penetrate Definition

    32 AWG

  • Penetration

    34mm steel board
