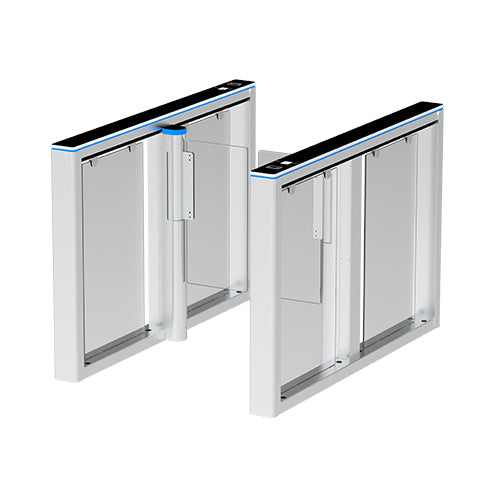

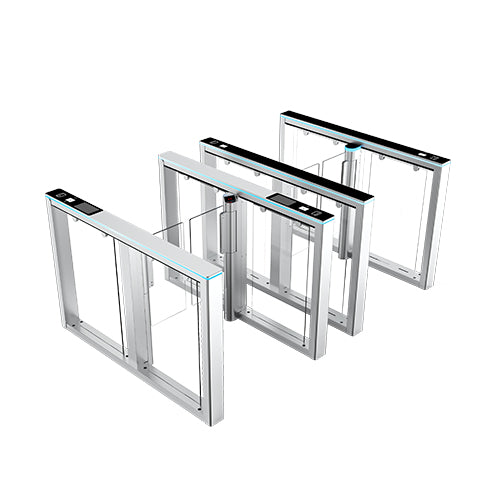

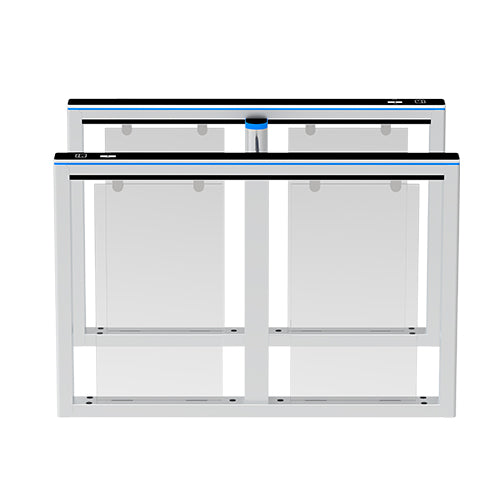

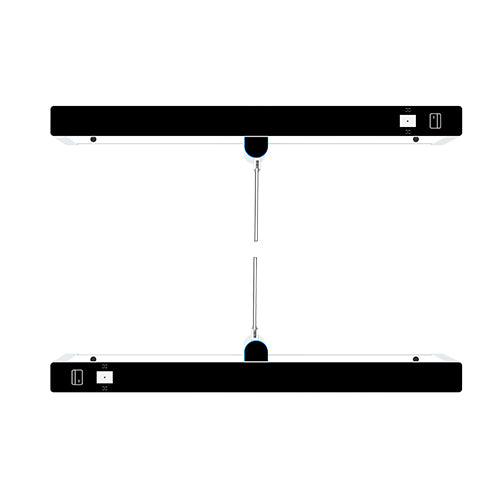

The Comet Series by ZKTeco is an innovative multi-credential speed gate featuring a sleek, transparent design that fits seamlessly into corporate settings. Available in single-lane and double wings versions, these gates combine advanced functionality with a lightweight yet robust chassis made of distinctive cast aluminum alloy. They offer customizable ambient lighting with 7 RGB colours and are designed for easy installation. The Comet Series revolutionizes facial recognition with eight undercount options and an ultra-wide-angle lens,  ensuring optimal performance for individuals of varying heights, including children and seniors  with wheelchairs. The series supports biometric, RFID, and QR code options, and offers flexible  lane combinations and diverse material choices to meet specific requirements. Security is enhanced with locked positions, clutch engagement, and automatic barrier opening in emergencies

Parameters:

• Model Name

  Comet-S1000
  Comet-S1200

• Audio Indicator

  Internal buzzer

• Visual Indicator

  LED strip along the lid (7 Colour RGB, Customizable)
  blue = stand by
  steady green = normal use
  steady red = door closing
  flashing red = alarm

• Display

  1 or 2*7" ISP touch monitor (Under mount facial recognition version only)

• Lane Type

  Comet-S1000: Single lane
  Comet-S1200: Dual wings (with comet-1000)

• Lane Width (mm)

  660mm (Standrad)
  900mm (Optional)

• Barrier Movement Type

  Swing

• Motor

  DC brushless motor

• Movement Speed

  0.8s per movement(open / Close timing)

• Movement Accuracy

  ≤1.5 Degree per movement

• Clutch

  Mechanical clutch for anti-panic / anti-collision

• Lid Material

  Tempered glass (Black) (Standard)

• Lid Options Authentication Methods

  Streamlined under mount options: Fingerprint / RFID / QR Code / Fingerprint + RFID / Fingerprint+QR Code / Fingerprint+RFID+QR Code / Facial recognition with display
  Top mount option: mounting pole (Compatible with ProFace X / SpeedFace V5L/ Elite Pass)

• Chassis Material

  Cast aluminium alloy (T=3mm)

• Chassis Colour

  Silver (Standard), gold (Optional)

• Door Leaf Material

  Clear acrylic (H*W 630*295mm (Standard))
  Clear tempered glass (H*W 630*295mm)

• IR Sensors

  8 Pairs (Standard) (High position)

• Motherboard Function

  System configuration, access mode configuration, anti-pinch configuration, anti-tailgate configuration etc.

• Motherboard Communication

  Fire alarm port(relay)*1, RS485 port*1

• Controller

  PGIC controller (Recommendation)
  Others depends on dimensions fitting in (Optional)

• Credential Options

  Under mount RFID reader: (support model: ProID series, Armatura EP10C & Armatura EP20 series)
  under mount QR code reader: QR500
  under mount fingerprint reader: FR1200 / FR1500
  under mount facial recognition terminal: G4 Pro
  Top mount facial recogntion terminal: ProFaceX / Elite Pass / SpeedFace V5L

• Flow Rate

  RFID: 30 passengers per minute
  QR Code: 30 passengers per minute
  Fingerprint: 20 passengers per minute
  Face: 15 passengers per minute

• Accessibility

  Under mount facial recognition version: adult, children, disability rest of the versions: adult, children (with care), disability (with care)

• Power Supply

  110V / 220V AC @ 50Hz to 60Hz

• Power Rating

  20 VA (Stand by)
  120 VA (Operation)

• Fire Signal

  Input for voltage free contact

• Noise Level

  Less than 60 dB

• MTTR

  Less than 60 minutes

• MCBF

  6 million

• Gross Weight

  Comet-S1000: 130kg
  Comet-S1200: 80kg

• Net Weight (kg)

  Comet-S1000: 100 kg
  Comet-S1200: 65 kg

• Dimension (L*W*H)

  1500*115*1000mm (Standard)

• Working Temperature

  -28°C to 60°c

• Working Humidity

  95% RH (non-condensing)

• Certifications

  CE, FCC

• Ingress Protection Rating

  N/A (Waterproof and dustproof)
  N/A (Barrier only) (Vandal ressistant)

• Supported Software

  ZKBio Access / ZKBio CVSecurity (Depends on equipped access controller)

• Safety Features

  Safety force sensing; Lower safety sensors; Accurate presence sensing ; Emitter/ receiver infrared sensors technology; Logic voltage 24V DC; Voltage free contact input for fire alarm fail state; Auto opening on power off; Anti-panic push opening in operation; Wide walkway for wheelchair or easier access; Accompanied wheelchair or child passage management (under mount facial recognition version)

• Security Features

  Anti-intrusion, Anti-tailgating, Wrong way enter alarm, Automatically close door no one pass

• Product Delivery

  Pre-assembled

• Application Environment

  Indoor

• Site Preparation

  Flat & level finished floor (Base plate in options for unfinished floor)
