SLK20R
Rated 3.5/5 based on 11 customer reviews

SLK20R

Available: On order
Wishlist Compare
  • NOTE: If Product Price Is R0.00 - Contact Us For A Quote ZKBIO0024
R 2,106.74

**SLK20R

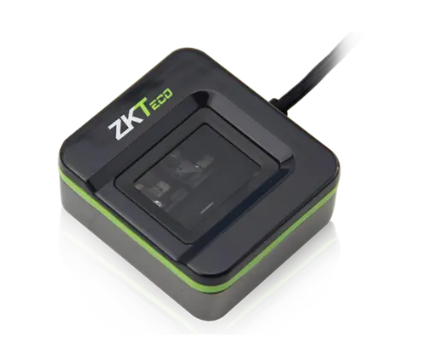

SLK20R is a leading fingerprint scanner designed by ZKTeco USA laboratory which adopts the advanced optical design. It has a superior ability to do live fingerprint detection and capture high-quality fingerprint images by 2 Megapixel camera. It can be the most comfortable and affordable desktop enrollment and identification device.
Features:

Model Name SLK20R
Material Optical
CPU 280MHz DSP
Flash 32 MB
SoC RTOS[image out only]
Image Quality 2 million pixels CMOS
Encrypted Fingerprint Data YES
Sunlight Operation Yes, Dark field and Automatic Gain / Exposure
Water Splash YES
Dry, Wet, or Rough Fingerprints Work well
Power Consumption 5V:200mA Scanning;5V:60mA idle (waiting for finger)
Live Fingerprint Detection YES
LED White
Product Certifications FCC, CE, RoHS, PIV
Power Voltage 5V (USB)
Power Current 200mA
Communication USB 2.0 / USB1.1
Interface Socket USB Type A
Image Resolution 500~1000 dpi
Effective Collecting Area 15.24 * 20.32 mm (FAP20)
Collecting Area 16.5 * 23 mm
Image Size 300 * 400 pixel (FAP20 )
Dimension 49 * 44 * 20.1mm (L*W*H)
Image Format RAW, BMP, JPG
Template ZKFinger V10.0 ; ISO19794-2 ; ANSI-378
Template Size 1- 4KB (ZKFinger V10.0);1568 B (ISO 19794-2)
Gray Level 256
Weight 0.12kg
Operating Environment -20 °C ~ +50 °C; 90% r.h.
