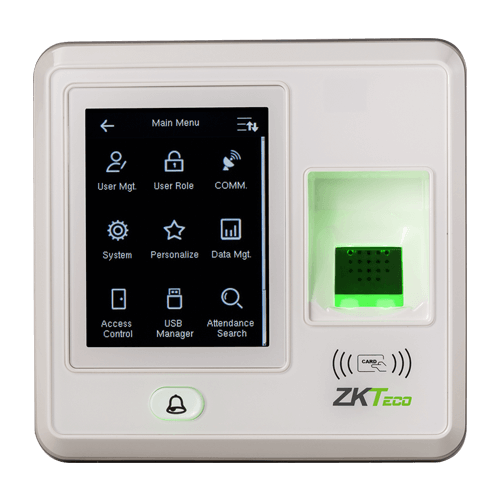

SF300-Fingerprint reader
Rated 3.5/5 based on 11 customer reviews

SF300-Fingerprint reader

Available: All prices include VAT. Shipping will be calculated at checkout
R 2,579.00

SF300-Fingerprint reader

The SF300 is an IP based fingerprint terminal, which operate in both network mode and standalone mode. It can connect with ZKAccess3.5 software for access control and time attendance management. Wiegand output makes SF300 flexible to connect with ZK or any 3rd party controllers as a slave reader, Additionally, wiegand input allows two units of SF300 to configure with each other and utilize Master & Slave solution, which requires user verification at both entrance and exit. Meanwhile, anti-passback function can be used to maximize the  security. Auxiliary input interface allows SF300 to connect with an external source, for instance, a smoke detector or emergency switch. Once the linkage function is enabled through the machine menu, the device would generate an alarm signal and open the door in case of emergency.



SF300-Fingerprint reader

The SF300 is an IP based fingerprint terminal, which operate in both network mode and standalone mode. It can connect with ZKAccess3.5 software for access control and time attendance management. Wiegand output makes SF300 flexible to connect with ZK or any 3rd party controllers as a slave reader, Additionally, wiegand input allows two units of SF300 to configure with each other and utilize Master & Slave solution, which requires user verification at both entrance and exit. Meanwhile, anti-passback function can be used to maximize the  security. Auxiliary input interface allows SF300 to connect with an external source, for instance, a smoke detector or emergency switch. Once the linkage function is enabled through the machine menu, the device would generate an alarm signal and open the door in case of emergency.



  • TCP/IP communication for various networking environments
  • Standard access control features
  • Tamper proof switch and multiple alarm outputs
  • 2.8-inch touch screen, color display with graphical UI for easy operation
  • Model: SF300
  • LCD2.8 inch capacitive touch screen
  • Fingerprint SensorZK Optical Sensor (500DPI)
  • Algorithm VersionZKFinger VX10.0
  • CommunicationTCP/IP, USB Host
  • Fingerprint Capacity1,500
  • Card Capacity (Optional)5,000 (EM/Mifare)
  • Records Capacity80,000
  • Access Control Interface Electric lock, Door sensor, Alarm, Exit button, Door Bell
  • Functions: DST, Automatic Status Switch, Record query, T9 input, 9 digit user ID, Anti-passback, Scheduled-Bell, Printer(Optional), ADMS(Optional) ,webserver (Optional)
  • Wiegand Signa Wiegand input & output
  • Aux. Input1ea for linkage function
  • Power SupplyDC 12V/3A
  • Operating Temperature0 ~ 45°C (32°~113°F)
  • Operating Humidity20 ~ 80%
  • Dimension(L x W x H)105 x 105 x 34mm
