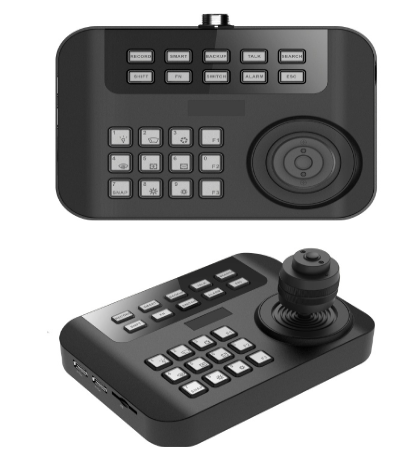

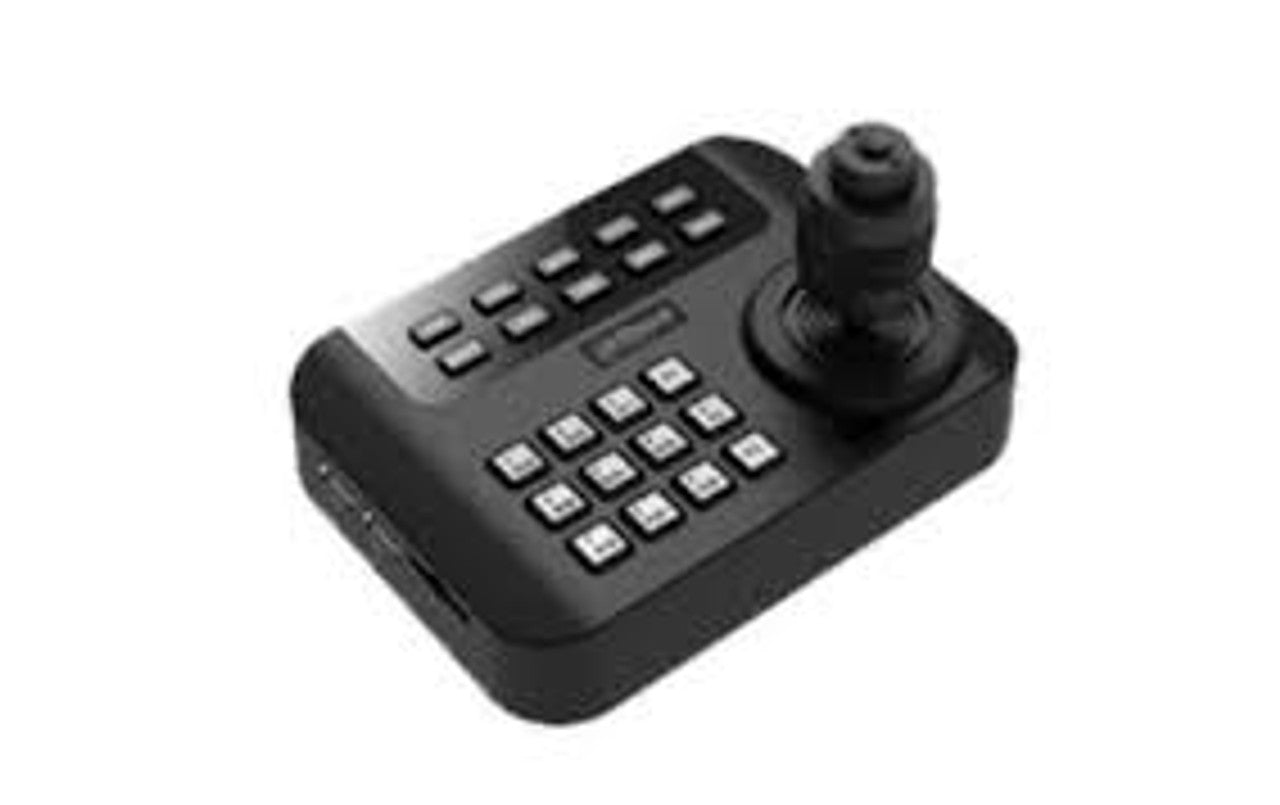

*Mobile control keyboard
Small size,22 buttons, suitable for patrol cars, buses, ap-
plication software and other small systems to use.
Four-dimensional operation joystick(3-axis and 1 button),
So that a smaller volume to achieve more functionality
Specifically for the use of cars, low power consumption.
Technical Specifications Dimensions (mm)
Operation Mode Joystick, button
Joystick 4-dimesion joystick (3-axis and 1 button)
Button 22 buttons
Indicator Light 9 buttons(8 button lights+1 power indicator
light)
Secure Mode Just put it on the flat ground to use (anti-
slippery)/bracket
Power Protection Circuit Misconnect power positive and negative end
will not result in device damage.
E-Lock 1
Communication Port 1 USB port
Storage Port 2 USB ports. 1 SD slot
Extension Port 1 RS232 port, 1 RS485 port
Input Voltage DC 5V±5%
Power Consumption ≤1W
Net Weight 560g
Working Temperature -30°C ~+70°C
Dimensions 170mm×125mm×34mm
Working Humidity 0%~90%
Air Pressure 86kPa~106kPa
