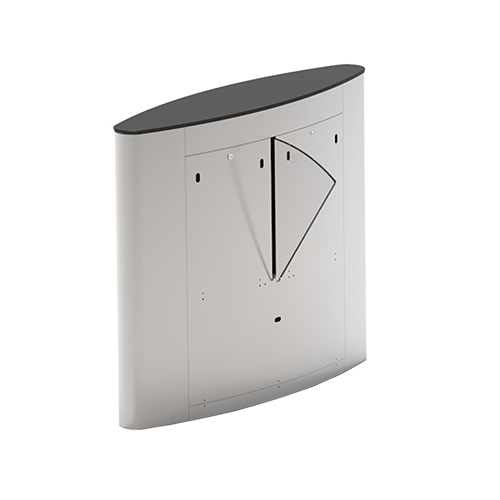

FBL5200 - Standard Flap Barrier - ZKEC00198
Rated 3.5/5 based on 11 customer reviews
ZKTeco

FBL5200 - Standard Flap Barrier - ZKEC00198

Available: All prices Exclude VAT. Shipping and Vat will be calculated at checkout
Wishlist Compare
  • NOTE: If Product Price Is R0.00 - Contact Us For A Quote ZKEC00198
R 102,171.91

**FBL5200 - Standard Flap Barrier Add-on Lane

SPECIAL ORDER ONLY - LEAD TIME DEPENDENT ON STOCK AVAILABILITY & CUSTOMS

The ZKTeco FBL5200 dual lane flap barrier turnstile is an elegant cost-effective entrance control system designed for high-traffic volume.
The FBL5200 series work together with FBL5000 series to build multiple lanes.
Standard Flap Barrier Add-on Lane contains driver control board and power supply.

**FBL5200 - Standard Flap Barrier Add-on Lane

SPECIAL ORDER ONLY - LEAD TIME DEPENDENT ON STOCK AVAILABILITY & CUSTOMS

The ZKTeco FBL5200 dual lane flap barrier turnstile is an elegant cost-effective entrance control system designed for high-traffic volume.
The FBL5200 series work together with FBL5000 series to build multiple lanes.
Standard Flap Barrier Add-on Lane contains driver control board and power supply.

  • Choice of reader (RFID or fingerprint)
  • LCD on the flap barrier control board
  • SUS304 stainless steel

Reliability
  • SUS304 stainless steel casework ensure long-lasting durability.
  • High quality electrical components.
Safety Features
  • Barriers retract automatically during emergencies.
  • Barriers retract automatically during power outage with battery installed.
  • All smooth finishing. No exposed screws.
  • Ergonomic design makes card and fingerprint authentication fast & simple for users.
Built-in Reader Integration
  • FBL5200 series is already integrated with our customers’ preference for either card or fingerprint access control reader. This greatly reduces installation time & expense.
  • FBL5200 series and associated access control readers are all factory-tested prior to shipping.
  • ZKTeco provides true plug & play turnstiles with the lowest possible total cost of ownership in the industry.
Simplification
  • LCD on the flap barrier control board, easy operation.


    Power requirements AC 100 ~ 120V/200 ~ 240V, 50/60Hz
    Working temperature -28℃~60℃
    Working humidity 5%~80%
    Working environment Indoor/outdoor (if sheltered)
    Speed of throughput RFID Maximum 30/ minute
    Fingerprint Maximum 25/ minute
    Lane width(mm) 600
    Footprint(mm*mm) 1200*840
    Dimensions(mm) L=1200,W=300,H=1010
    Dimension with packing(mm) L=1400,W=400,H=1100
    Net weight(kg) 81
    Weight with packing(kg) 116
    LED indicator Y
    Cabinet material SUS304 Stainless Steel
    Lid material Tempered Glass
    Barrier material Acrylic
    Barrier movement Retracting
    Emergency mode Y
    Security level Medium
    MCBF 2 million
