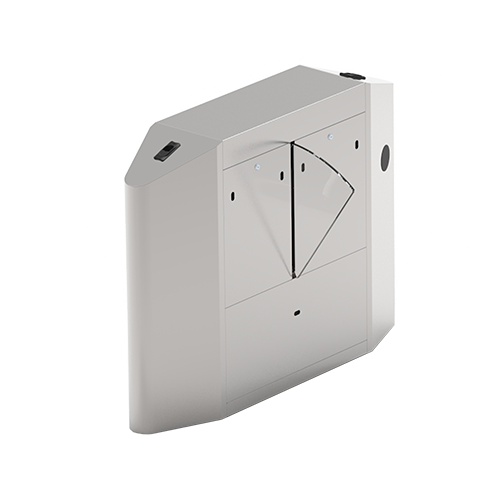

**FBL4211 - RFID Flap Barrier
SPECIAL ORDER ONLY - LEAD TIME DEPENDENT ON STOCK AVAILABILITY & CUSTOMS
The FBL4200 Series are compatible with each other enabling the build of multiple lanes.
It’s made of stainless steel making it highly durable, designed for smooth and silent operation and minimal power usage.
FBL4200 barriers are normally held in a locked position, thus denying access to the secured area.
Upon verification of the user's valid access card (RFID), or fingerprint, the barrier retract automatically, allowing the user access to the area beyond the turnstile. During emergencies, the barriers automatically retract upward, thereby avoid users being trapped. A battery for power outage safety can be installed for retracting the barrier automatically.
FBL4200 provides security, durability and its elegant compact design requires minimal space.
The FBL4200 Standard Flap Barrier Add-on Lane contains driver control board and power supply.
**FBL4211 - RFID Flap Barrier
SPECIAL ORDER ONLY - LEAD TIME DEPENDENT ON STOCK AVAILABILITY & CUSTOMS
The FBL4200 Series are compatible with each other enabling the build of multiple lanes.
It’s made of stainless steel making it highly durable, designed for smooth and silent operation and minimal power usage.
FBL4200 barriers are normally held in a locked position, thus denying access to the secured area.
Upon verification of the user's valid access card (RFID), or fingerprint, the barrier retract automatically, allowing the user access to the area beyond the turnstile. During emergencies, the barriers automatically retract upward, thereby avoid users being trapped. A battery for power outage safety can be installed for retracting the barrier automatically.
FBL4200 provides security, durability and its elegant compact design requires minimal space.
The FBL4200 Standard Flap Barrier Add-on Lane contains driver control board and power supply.
- SUS304 stainless steel casework ensures long-lasting durability.
- High-quality electrical components.
Safety Features:
- Barriers retract automatically during emergencies.
- Barriers retract automatically during the power outage with battery installed.
- All smooth finishing. No exposed screws.
- Ergonomic design makes the card and fingerprint authentication fast & simple for users.
Built-in Reader Integration:
- FBL4200 series is already integrated with our customers’ preference for either card or fingerprint access control reader. This greatly reduces installation time & expense.
- FBL4200 series and associated access control readers are all factory-tested prior to shipping.
- ZKTeco provides true plug & play turnstiles with the lowest possible total cost of ownership in the industry.
- Simplification: LCD on the flap barrier control board, easy operation.
Brand | ZKTeco |
Working Temperature | -28 - 60 deg C |
Power Requirements | AC 100 ~ 120V/200 ~ 240V, 50/60Hz |
Working humidity | 5%-80% |
Working environment | Indoor/Outdoor(if sheltered) |
Speed of throughput RFID | Maximum 42/minute |
Speed of throughput Fingerprint | Maximum 35/minute |
Speed of throughput Face | Maximum 11/minute |
Speed of throughput Vein | Maximum 23/minute |
Lane width | 600 mm |
Footprint | 1350x840 mm |
Dimensions | L=1350, W=300, H=1010 mm |
Dimension with packing | L=1500, W=400, H=1100 mm |
Net weight | 84 kg |
Weight with packing | 119 kg |
LED indicator | Yes |
Cabinet material | SUS304 Stainless Steel |
Lid material | SUS304 Stainless Steel |
Barrier material | Acrylic |
Barrier movement | Retracting |
Emergency mode | Yes |
Security level | Medium |
MCBF | 2 million |
