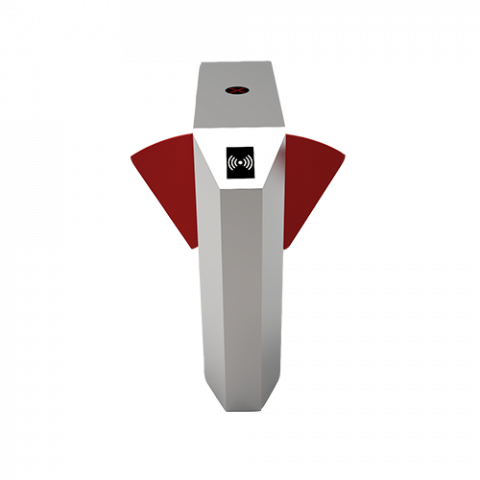

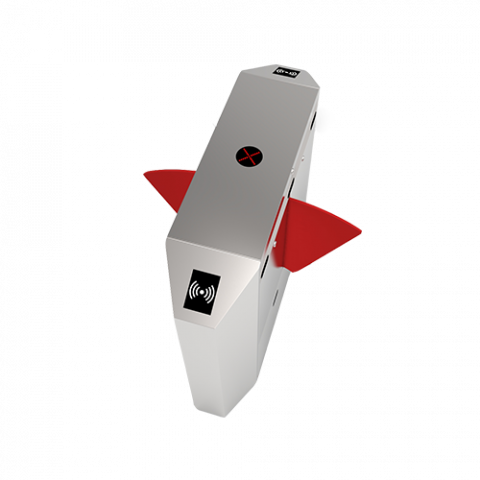

FBL2222-RFID+FP Flap Barrier
FBL2222-RFID+FP Flap Barrier
 Reliability
• SUS304 stainless steel casework ensure long-lasting durability
• High quality electrical components
Â
Safety Features
• Barriers retract automatically during emergencies
• Barriers retract automatically during power outage with battery installed
• All smooth finish. No exposed screws.
• Ergonomic design makes card and fingerprint authentication fast & simple for users.
Â
Built-in Reader Integration
• FBL2200 series ships already integrated with our customers’ preference for either card or fingerprint access control reader. This greatly reduces installation time & expense.
• FBL2200 series and associated access control readers are all factory-tested prior to shipping.
•ZKTeco provides true plug&play turnstiles with the lowest possible total cost of ownership in the industry.
 Simplification
• LCD on the flap barrier contrl board, easy operation.
| Feature | ||
|---|---|---|
| Power requirements | AC 100 ~ 120V/200 ~ 240V, 50/60Hz | |
| Working temperature | -28℃~60℃ | |
| Working humidity | 5%~80% | |
| Working environment | Indoor/outdoor (if sheltered) | |
| Speed of throughput | RFID | Maximum 30/ minute |
| Fingerprint | Maximum 25/ minute | |
| Lane width(mm) | 600 | |
| Footprint(mm*mm) | 840*1150 | |
| Dimensions(mm) | L=1150,W=300,H=1000 | |
| Dimension with packing(mm) | L=1480,W=410,H=1110 | |
| Net weight(kg) | 69 | |
| Weight with packing(kg) | 98 | |
| LED indicator | Y | |
| Cabinet material | SUS304 Stainless Steel | |
| Lid material | SUS304 Stainless Steel | |
| Barrier material | Acrylic | |
| Barrier movement | Retracting | |
| Emergency mode | Y | |
| Security level | Medium | |
| MCBF | 2 million |
