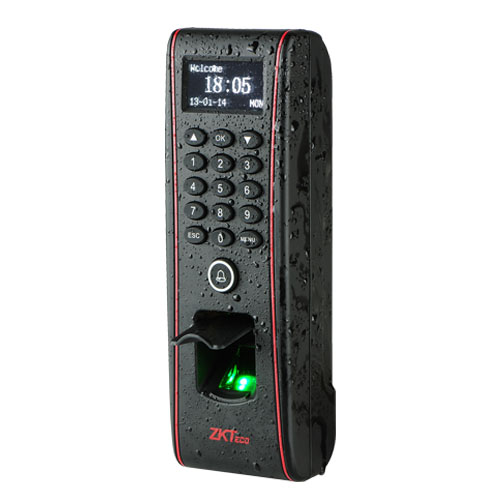

**F17 Fingerprint Reader
The ZKTeco F17 Fingerprint Reader is a compact and robust biometric access control terminal, engineered for both security and efficiency. Its sleek design and advanced features make it an ideal choice for various access control applications.
Key Features:
-
Advanced Fingerprint Recognition: Equipped with an infrared detection fingerprint sensor, the F17 ensures precise and swift authentication.
-
Versatile Communication Options: Supports TCP/IP, RS485, and USB Host interfaces, facilitating seamless integration into diverse security setups.
-
Flexible Authentication Methods: Offers multiple verification modes, including fingerprint, PIN, and card (EM standard, with optional Mifare support), catering to varied security requirements.
-
Durable and Weather-Resistant: With an IP65 ingress protection rating, the F17 is built to withstand harsh environmental conditions, making it suitable for both indoor and outdoor installations.
-
User-Friendly Interface: Features a 128 x 64 OLED display and a 3x5 keypad with a doorbell function, ensuring intuitive operation and easy user interaction.
Technical Specifications:
-
Model Number: F17
-
Fingerprint Sensor: Infrared detection sensor
-
Algorithm Version: ZK Finger VX10.0
-
Communication Interfaces: TCP/IP, RS485, USB Host
-
Fingerprint Capacity: 3,000 (expandable to 8,000)
-
Card Capacity: 10,000
-
Log Capacity: 50,000 transactions
-
RF Card Compatibility: EM (standard); Mifare (optional)
-
Authentication Methods: Fingerprint, PIN, Card
-
Wiegand Signal: Input and output
-
Ingress Protection: IP65
-
Display: 128 x 64 OLED
-
Keypad: 3x5 keys with doorbell function
-
Sound and Interface: Buzzer and multi-color LED indicators
-
Operating Voltage: 12V DC, 3A
-
Operating Temperature: -10°C to 50°C (14°F to 122°F)
-
Dimensions: 62.5mm (W) x 185mm (H) x 41.5mm (D)
Applications:
-
Corporate Offices: Enhances security by restricting unauthorized access.
-
Residential Complexes: Provides controlled entry for residents and visitors.
-
Industrial Facilities: Secures sensitive areas, ensuring only authorized personnel have access.
The ZKTeco F17 stands out as a reliable and efficient solution for modern access control needs, combining advanced biometric technology with durable design.
