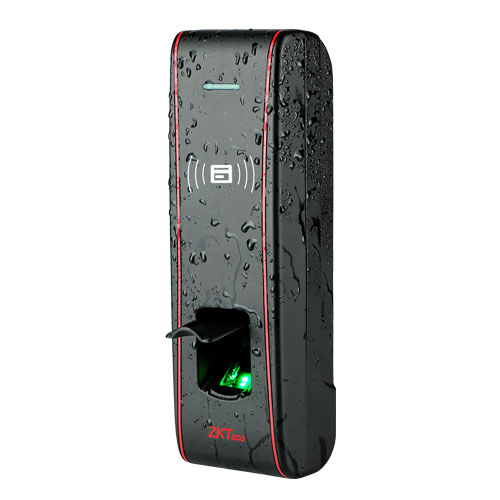

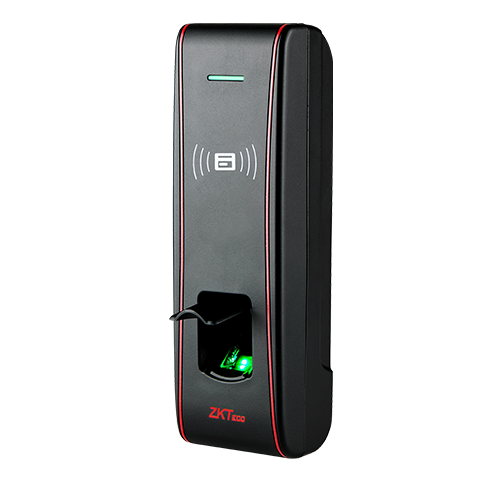

**F16 Fingerprint Reader
F16 is a fingerprint access control terminal with an integrated proximity reader (EM). It is IP65 rated which enables it to be resistant from water, dust and other potential exterior elements.
It is easily installed on your network having both Ethernet and RS485 serial ports. Weigand-OUT port allows connection of reader to ZK or any 3rd party access control panels. Using Weigand-In port, you can connect to any card readers for authentication at both entrance and exit.
The PULL firmware and ZKAccess3.5 are the standard configurations which make F16 more versatile and powerful. Users can be registered on the device by the Management Card or through connecting with ZKAccess3.5 software by TCP/IP.Â
Â
**F16 Fingerprint Reader
F16 is a fingerprint access control terminal with an integrated proximity reader (EM). It is IP65 rated which enables it to be resistant from water, dust and other potential exterior elements.
It is easily installed on your network having both Ethernet and RS485 serial ports. Weigand-OUT port allows connection of reader to ZK or any 3rd party access control panels. Using Weigand-In port, you can connect to any card readers for authentication at both entrance and exit.
The PULL firmware and ZKAccess3.5 are the standard configurations which make F16 more versatile and powerful. Users can be registered on the device by the Management Card or through connecting with ZKAccess3.5 software by TCP/IP.Â
- Full Access Control Features
- Slim and Elegant Design
- Fast and Accurate Fingerprint Algorithm
- For Software Developers
- Easy Installation and Connectivity
- Rugged Structure for Outdoor Installation and Extra Durability
| Fingerprint Sensor | ZK Optical Sensor |
| Algorithm Version | ZKFinger VX10.0 |
| Communication | TCP/IP, RS485 |
| Fingerprint Capacity | 3,000 Fingerprints |
| Card Capacity | 30,000 Cards |
| Log Capacity | 100,000 Transactions |
| RFÂ Card | EM(standard)/Mifare (optional) |
| Authentication | Finger/Card or Finger & Card |
| Wiegand Signal | Wiegand input & output |
| Ingress Protection Rate | IP65 |
| Operating Voltage | 12VDC 3A |
| Operating Temperature | 0~ 45 °C (32°F ~ 113°F) |
| Dimension | 62.5mm×185mm×41.5mm (W×H×D) |
