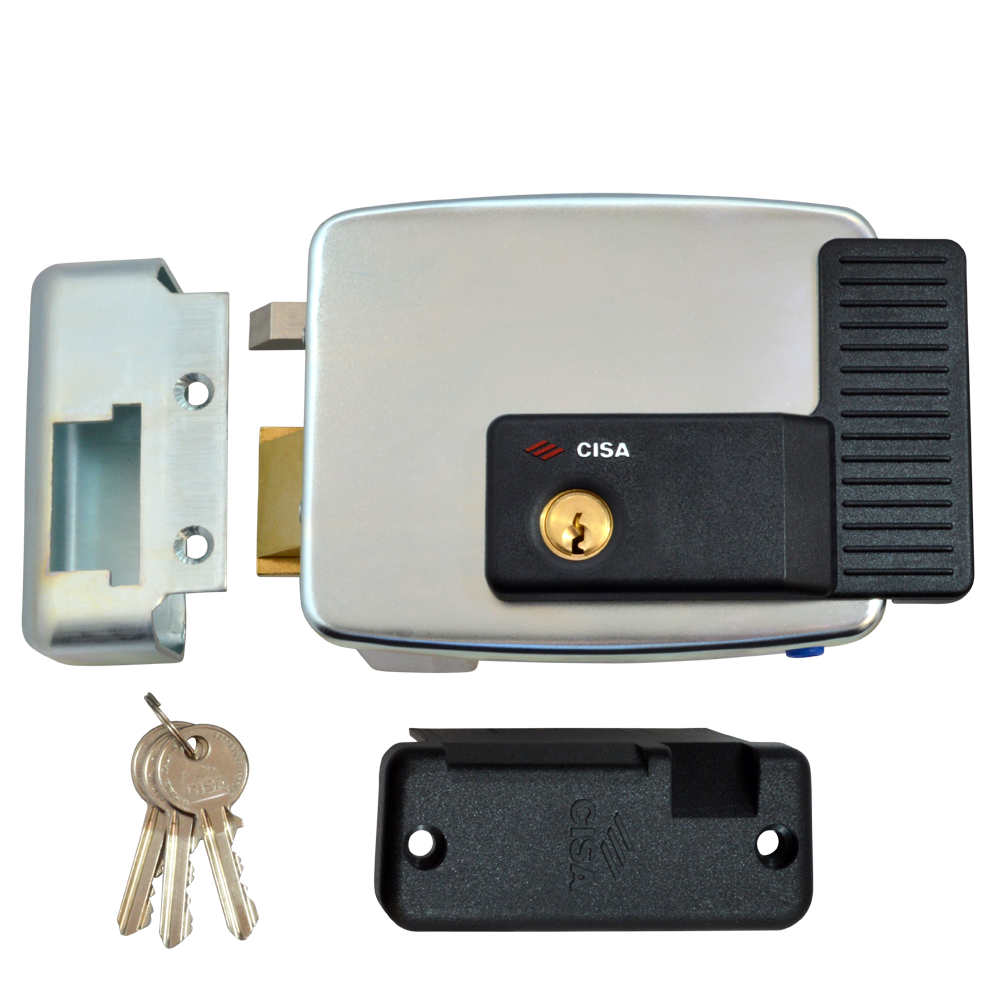

CISA Electric Rim Gate Lock
Cisa high quality electric lock. Pull resistant up to 2000kg, tested for one million cycles. For use on inward opening wooden doors. With or without mechanical button. Features the Cisa patented dead locking latch. Zinc-plated steel case and striker. 12 V ac CE. Suitable for heavy as well as light weight doors. Supplied with three keys, fixing screws and fitting instructions. Can be opened using remote transmitter for keyless & wireless door opening.
CISA Electric Rim Gate Lock
Cisa high quality electric lock. Pull resistant up to 2000kg, tested for one million cycles. For use on inward opening wooden doors. With or without mechanical button. Features the Cisa patented dead locking latch. Zinc-plated steel case and striker. 12 V ac CE. Suitable for heavy as well as light weight doors. Supplied with three keys, fixing screws and fitting instructions. Can be opened using remote transmitter for keyless & wireless door opening.
 Outside: Cylinder
- Inside: Push Button + Cylinder
- For Inward Open Timber Doors
The traditional CISA Rim electric lock has been in production for over 50 years with continuous innovative improvements along the way.
Today the traditional CISA Rim electric lock is well known as the best and most reliable rim electric lock in its class amongst installers.
7 Reasons why you should choose a CISA rim electric lock
Latch Protection
When the door is closed, a patented deadlocking device makes it impossible for burglars to open the door by drawing back the latch.
Adjustable Closing Pressure
The removable copper-plated pin allows for adjustment of the pressure applied by the reloading-pin spring to suit door weight. This should only be performed on doors that are not vulnerable to attack.
Patented Adjustable Coil
The coil assembly ensures efficient lock functioning even when voltage is low, hence eliminating the problems deriving from drops in voltage on the electrical system. Tested at 4V AC.
Quick Wiring
A new type of terminal board allows for quick coupling of the electrical cables, doing away with traditional screw terminals.
Pick-Resistant
The insertion of a protective barrier between the release armature and cable-hole area defies any attempt to illicitly open the lock.
Stronger
Certain constructional features ensure greater resistance of the latch shank to impact and side pressure due to rebound when the door or gate is closed.
Attack Resistant
The new mounting cover plate and protective cylinder rose greatly improve the resistance to attack.
The mounting plate made from 4mm thick steel protects the top and underside of the lock from attack.
Whereas the protective cylinder rose protects the cylinder from being snapped or hit with blunt force.
