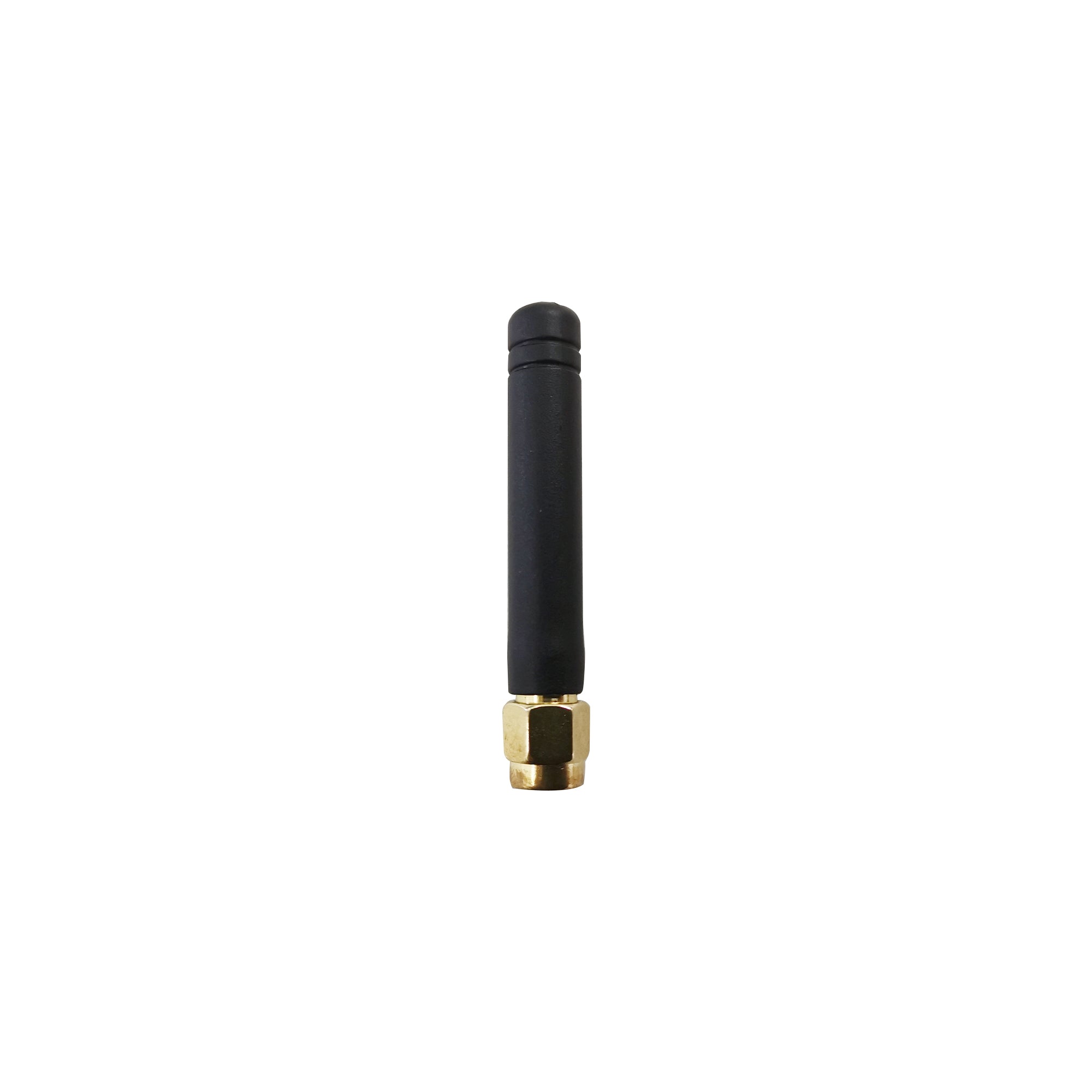

**IDS RDC GSM stubby antenna 862-09-AS

FEATURES:


  • GSM portable antenna general data
    • Dimensions (mm): 48 x 8
    • Temperature range: -40o C to +85o C
    • Coaxial connector : SMA/M
  • Technical data cellular
    • Supported band: GSM 850,900,1800,1900
    • Frequency (MHz): 824~960 1710~1990
    • Impedance: 50 Ω
    • Gain: 0 dBi
    • VSWR: 2.3
    • Band antenna efficiency
      o GSM 850, 15%
      o GSM 900 , 18%
      o GSM 1800, 17%
      o GSM 1900, 18%
      o UMTS 2100, 18%
