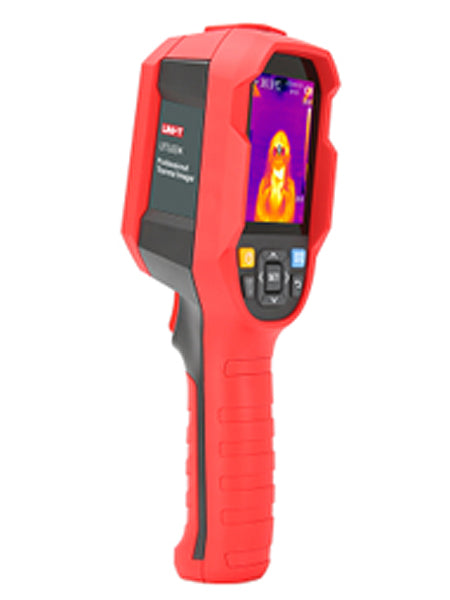

ZK-178K-Thermal Imager
ZK-178K is an infrared thermal imager with visible light camera which combines surface temperature measurement and real-time thermal image. It also supports real-time image transmission function. Traditional infrared thermometer can only measure temperature and needs to measure each accessory one by one. Compared with traditional infrared thermometer, ZK-178K can measure multiple temperatures of accessories once and potential problems can be clearly displayed on the screen. It also has a wide range of measurement and photography functions to work in a variety of shooting environments. For example, the built-in high brightness lamp allows you to easily find the tested object in dark environment. This product adopts a new generation of sensor module to ensure excellent infrared resolution and multiple colour plate mode.Â
ZK-178K-Thermal Imager
ZK-178K is an infrared thermal imager with visible light camera which combines surface temperature measurement and real-time thermal image. It also supports real-time image transmission function. Traditional infrared thermometer can only measure temperature and needs to measure each accessory one by one. Compared with traditional infrared thermometer, ZK-178K can measure multiple temperatures of accessories once and potential problems can be clearly displayed on the screen. It also has a wide range of measurement and photography functions to work in a variety of shooting environments. For example, the built-in high brightness lamp allows you to easily find the tested object in dark environment. This product adopts a new generation of sensor module to ensure excellent infrared resolution and multiple colour plate mode.Â
- Pixel: 160*120
- Measuring Range: 30℃~45℃
- Resolution: 0.1℃
- mage frame rate: 9HZ
- Measurement deviation: ±0.5℃
- Best Temperature Measurement Distance: 1m
- FOV: 56゜(H)*42゜(V)
- IFOV: 6mrad
- Battery: Li-ion 3.7V/5000mAh
- Screen: 2.8 inch TFT(320*240)
- Dimension: 236mm*75.5mm*86mm
- Throwing screen function
- Mounting hole 1/4 inch tripod
| Sensor | Uncooled Focal Plane |
| Temperature Range | 30°C ~ 45°C |
| Resolution | 0,10C |
| Accuracy | ±0.5°C (@ 25°C ambient temperature) |
| Optimal Measuring Distance | 1m |
| Temperature Measurement Response Time | ≤500ms (95% of reading) |
| Thermal Resolution | 19200 (160 × 120) |
| Pixel Dimensions | 12μm |
| Palettes | Iron red, rainbow, glowing white, glowing black, glowing red, lava, high-contrast rainbow |
| Bandwidth of Infrared Spectroscopy | 8~14μm |
| Field of View (FOV) | 56°(H) × 42°(V) |
| Instantaneous Field of View (IFOV) | 6mrad |
| Thermal Imaging Sensitivity | <50mk |
| Frame Rate | <9Hz |
| Temperature Display | Centre temperature measurement and high temperature tracking (default) |
| Image Format | BMP |
