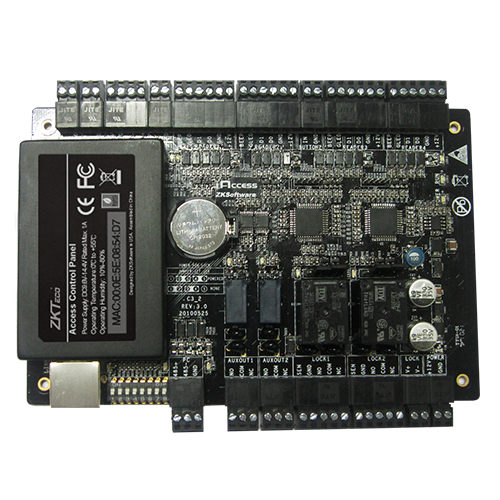

C3-100 One Door Controller
C3-100-Door Access Control Panel
The C3 controller manages access to a building or area via a door. It is IP-based, meaning it leverages Internet Protocol to communicate with other networked devices.
C3-100-Door Access Control Panel
The C3 controller manages access to a building or area via a door. It is IP-based, meaning it leverages Internet Protocol to communicate with other networked devices.
- Built-In Advanced Access Control
- Capacity
- Choice of Readers
- Communication
- More than Door Control
- For Software Developers
- Lowest Total Cost of Ownership
- Options
| Number of Doors Controlled | 1 Door |
| Number of Readers Supported | 2 |
| Types of Readers Supported | 26-bit Wiegand, others upon request |
| Number of Inputs | 2 (Exit Device and Door Status) |
| Number of Outputs | 2 (1-From C Relay for Lock and 1-Form C Relay for Aux Output) |
| Card Holders Capacity | 30,000 |
| Log Events Capacity | 100,000 |
| Weight | 7.4lbs (3.35kg) |
| Communication | TCP/IP, RS-485 and WiFi optional |
| Enclosure | Powder Coated Aluminium |
| Mounting | Wall Mount |
| Recommended Power Supply | 12V DC, 1.5A |
| Dimensions (Bundle Only) | 15in.×3.15in.×11in. 380mm(L) X 80mm(W) X 280mm(H) |
| Dimensions (Board Only) | 6.3in.×4.17in. (160mm×106mm) |
